Describe:
The equipment adopts low-speed rotation, curved plate hammering, dispersing materials, so that the high-temperature airflow and materials are directly mixed to achieve the effect of drying uniformity.
It is mainly used for drying biomass raw materials, such as: wood chaff, wood chips, bamboo powder, rice husk, cattle and sheep manure,

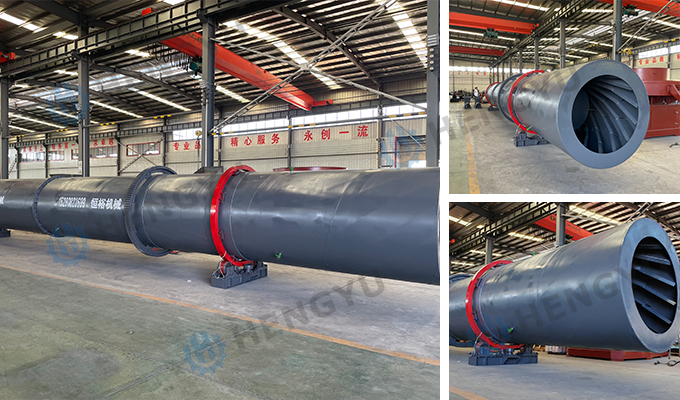

Drum dryer is mainly composed of cylinder body, roller ring, base stop roller, tail dust removal equipment, through the hot air and materials in contact with the cylinder body, through the cylinder lifting plate structure design, so that the material and the hot air fully in contact with the drying effect of the drying equipment.
Specificity:
01Energy saving and high thermal efficiency: the triple stacked layer dryer adopts a special three-layer heat insulation structure design, forming a self-insulating circulating structure body, which can reduce heat dissipation and improve thermal efficiency. Low energy consumption: due to high thermal efficiency, the triple layer dryer consumes relatively less energy in the drying process;
02Working principle: the use of low-speed rotation, curved plate hammering, dispersion of materials, so that the high-temperature airflow and material mixing, to achieve drying and uniformity of the effect;
03Material: the equipment is made of wear-resistant manganese plate, which is 3-4 times more wear-resistant than ordinary steel plate, improving the service life and durability of the equipment;
04Intelligent control: adopting advanced control system and sensor technology, it is able to realize automatic control and monitoring, which further improves the intelligent level of the equipment.
Product Details
Working Principle
Triple stacked layer dryer (also called triple drying tower) is a kind of high efficient and energy-saving continuous drying equipment, which realizes the dehydration of materials in stages through the design of multi-layer structure and sectional drying, especially suitable for materials which are sensitive to the requirements of drying temperature and humidity, or which need to be dried for a long time at a slow speed (e.g. grains, foodstuffs, chemical raw materials, etc.). Its core feature is the use of vertically stacked three-layer drying chamber, combined with the optimization path of hot air circulation and material flow, which significantly improves the thermal efficiency and drying uniformity.
Main Technical Parameters
| Specification/Model |
Power (output) |
Number of revolutions per minute |
Drying capacity |
Fan power |
|
Φ325mm（Pulse airflow） |
- |
- |
0.5-1 |
11 |
|
Φ800*10m（Straight tube） |
5.5 |
1-6 |
1 |
11 |
|
φ1000*10m（Straight tube） |
5.5 |
1-6 |
1-1.5 |
15 |
|
φ1200*16m（Stromatolite） |
7.5 |
1-6 |
2-3 |
22 |
|
φ1500*16m（Stromatolite） |
11 |
1-6 |
3-4 |
30 |
|
φ1600*16m（Stromatolite） |
11 |
1-6 |
4-6 |
37 |
|
φ1800*18m（Stromatolite） |
15 |
1-6 |
6-8 |
45 |
|
φ2100*20m（Stromatolite） |
18.5 |
1-6 |
7-9 |
55 |
|
φ2600*24m（Stromatolite） |
30 |
1-6 |
8-10 |
90 |
|
φ2800*28m（Straight tube） |
37 |
1-6 |
8-10 |
110 |
|
Φ3000*30m（Straight tube） |
45 |
1-6 |
10-15 |
110 |
Note: The moisture content of raw materials is ≤40%, and the drying capacity changes with different moisture of raw materials. The above parameters are for reference only, please refer to the actual.

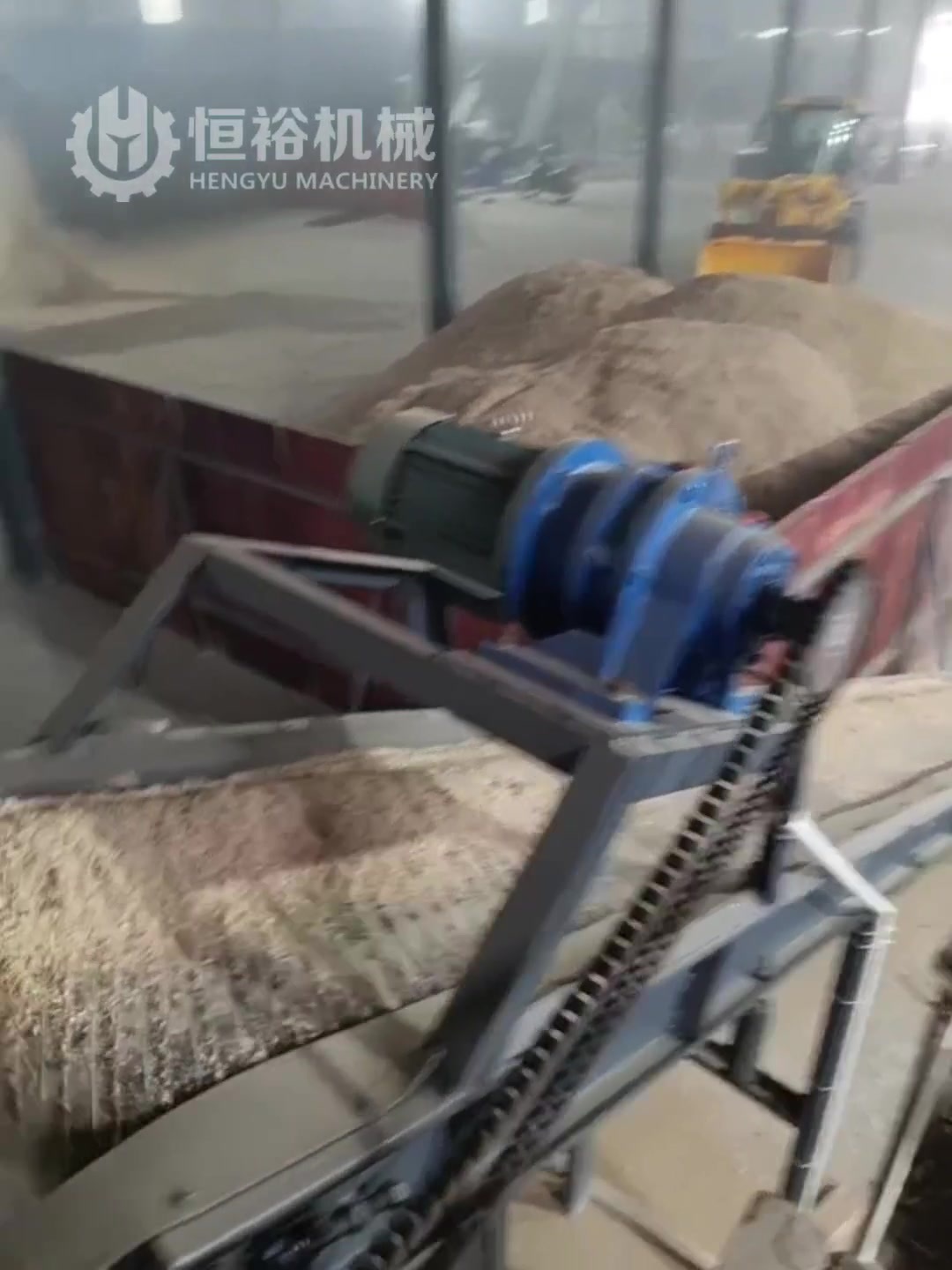

Work Scenario
Triple Layer Dryer
