Integrated Crusher
Keywords：
Integrated Crusher
Products
About Us
Enterprise strength
Product Overview
Describe:
The comprehensive crusher (mobile chain plate crusher) processes a wide range of raw materials, (easy and flexible deployment) can process wood such as all kinds of small diameter wood, veneer, slats, round wood core, building moldings, etc., as well as all kinds of non-woody raw materials such as all kinds of bulk straw, cotton firewood, reeds, etc., with a wide range of applications. The machine adopts chain plate type intelligent feeding, which can automatically adjust the feeding speed according to the load of the main motor. It makes the machine run at full load to avoid no-load operation, makes the feeding smoother and greatly improves the production capacity, which is the recommended equipment for biomass power plant.
Specificity:This includes efficient crushing capacity, intelligent operation, durability and environmental friendliness.
01Efficient crushing capacity: the integrated wood crusher can efficiently crush wood into uniform pieces or wood chips, greatly improving the processing efficiency of wood. Whether it is thick logs or all kinds of waste wood, it can easily cope with it and quickly break it into pieces of required specifications. In addition, the multifunctional crusher integrates multiple crushing methods, which can handle different kinds of wood and further improve the crushing efficiency.
02Intelligent operation: the wood integrated crusher is equipped with an intelligent control interface, which allows workers to easily get started and accurately set various parameters such as crushing granularity and feeding speed. The high stability of the equipment during operation reduces the time wasted due to malfunction and downtime, and improves the overall working efficiency.
03Durability: The body of the wood integrated crusher is designed to be sturdy and durable, able to operate stably under long-time high-intensity operation, reducing the trouble of frequent maintenance and saving a lot of time and energy for the enterprise. Certain manufacturers use high-strength alloy materials to further extend the service life of the equipment and reduce maintenance costs.
04Environmentally friendly: The wood integrated crusher is in line with the concept of sustainable development by efficiently recycling and utilizing waste wood and transforming it into valuable wood products. The equipment has low noise and no vibration during operation, further reducing environmental pollution.

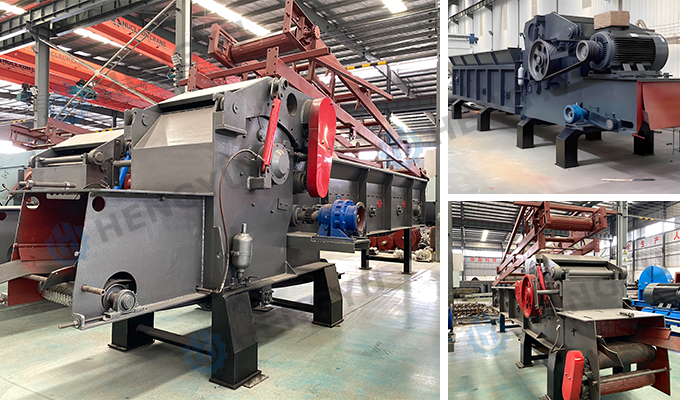

Product Details
Working Principle
The working principle of the wood integrated crusher is mainly through the impact energy to complete the wood crushing operation. The machine is driven by the motor rotor rotates at high speed, the wood enters into the crusher cavity evenly, and the high-speed rotating hammer head impacts, shears and tears the wood to make it be crushed. At the same time, the gravity of the wood itself makes the wood from the high-speed rotating hammer head rushed to the frame body baffle, sieve bars, smaller than the size of the sieve particles discharged through the sieve plate, larger than the size of the sieve wood in the crushing chamber for the second time, until it meets the requirements.
Main Technical Parameters
|
Model No. |
Power (kW) |
Production capacity (t/h) |
Size of feed opening (mm) |
Applicable material diameter (mm) |
Rotor Diameter (mm) |
Number of moving knives (pieces) |
|
HY-216 |
55 |
3-5 |
600 |
≤200 |
650 |
3 |
|
HY-217 |
90 |
4-6 |
700 |
≤250 |
650 |
3 |
|
HY-218 |
110 |
6-8 |
800 |
≤350 |
800 |
6 |
|
HY-1000 |
110 |
8-10 |
1000 |
≤200 |
650 |
6 |
|
HY-1300 |
132-160 |
10-15 |
1300 |
≤350 |
800 |
6 |
|
HY-1400 |
160-200 |
15-20 |
1400 |
≤400 |
800(1050) |
6 |
|
HY-1600 |
220-250 |
18-25 |
1600 |
≤350 |
800(1050) |
6 |
|
HY-2000 |
250-315 |
25-30 |
2000 |
≤350 |
800(1050) |
6 |

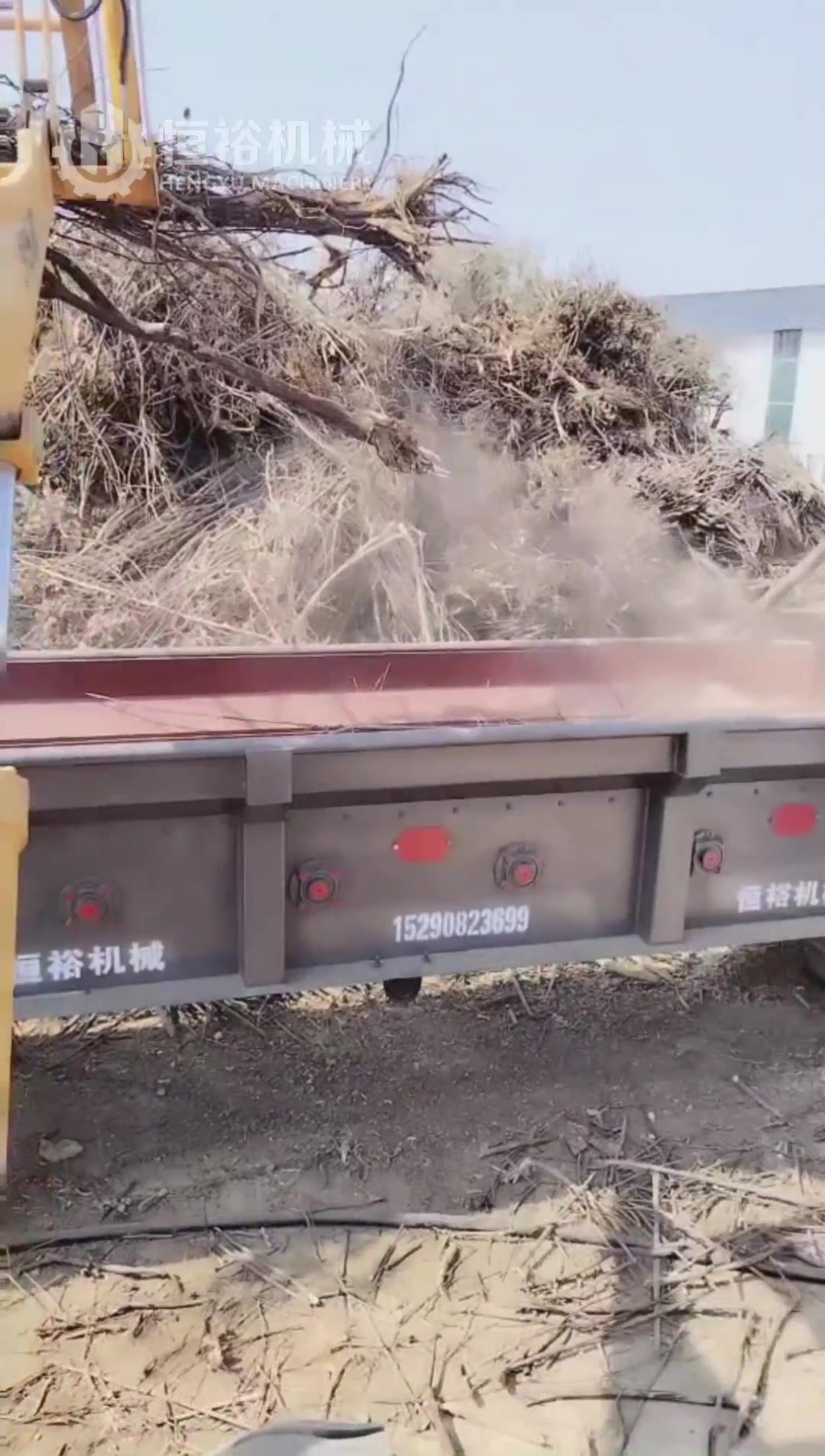

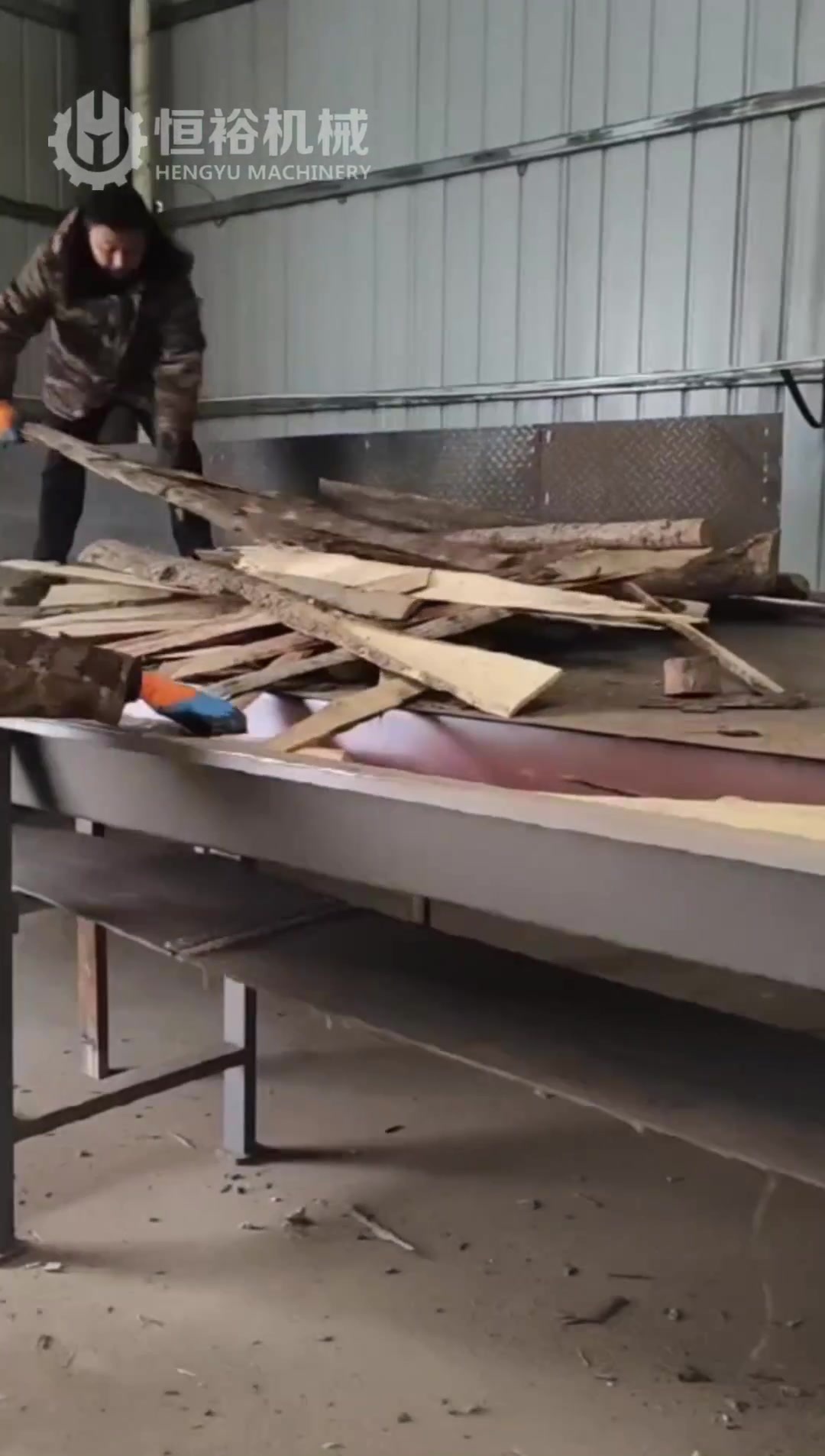

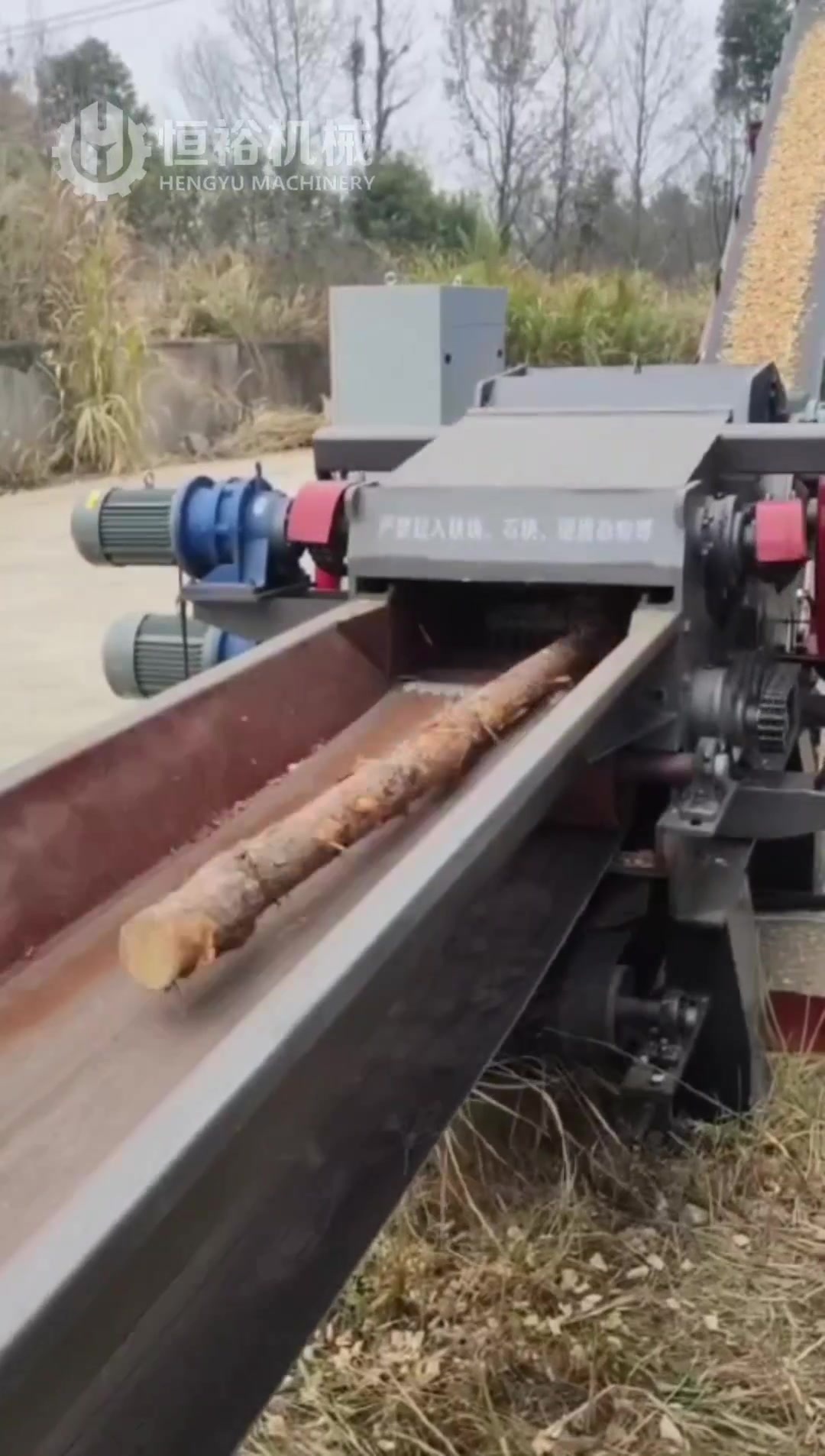

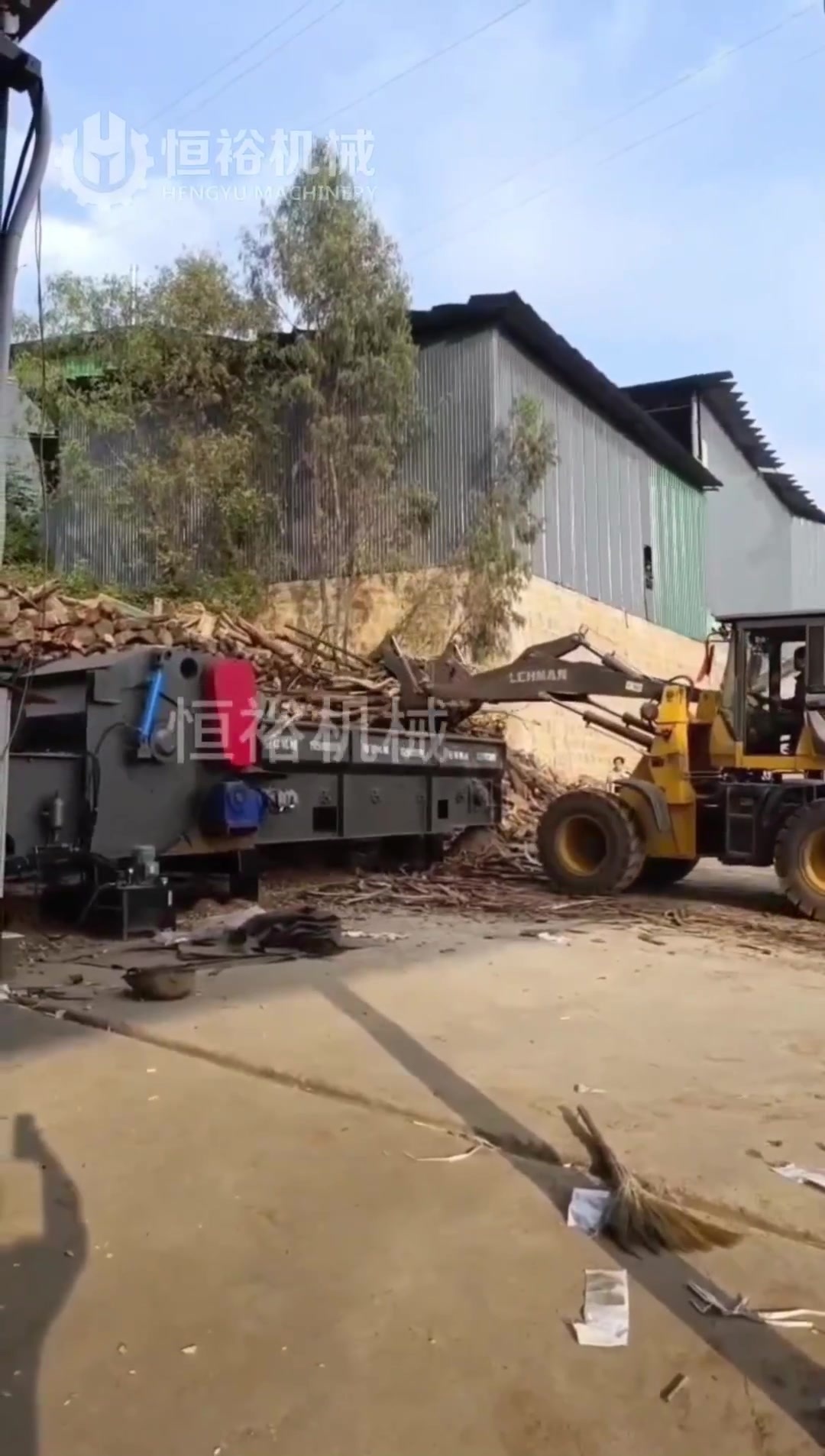

Work Scenario
Integrated Crusher 04
Integrated Crusher 03
Integrated Crusher 02
Integrated Crusher 01
