Describe:
Granule Packing Machine: It is mainly suitable for quantitative packaging of granular and small granular bulk materials with good fluidity; the feeding method is pneumatic conveying, designed according to the structure of domestic granule feeder. The granule packing machine is a steel structure one-piece type, the weighing system is equipped with precision load cell and weighing display meter, precision. According to the corrosive and viscous characteristics of some materials, the part of the packaging machine in contact with materials can be lined with 304 stainless steel.
Specificity:
01The Chinese digital display is simple and intuitive, the packaging specifications are continuously adjustable, and the working status can be changed arbitrarily, the operation is very simple.
02Granule packaging machine has a variety of feeding methods for choice, quantitatively accurate, high precision.
03With weighing value setting, storage, modification and other functions.
04With zero setting and automatic zero tracking function.
05It has functions of total weight of package and cumulative display of number of bags.
06With interlock control function for weighing, unloading and bag clamping.
07With automatic and manual tare function.
Product Details
Working Principle
When the quantitative packaging machine enters the automatic operation state, the weighing control system opens the feeding door and starts to add materials, the feeding device is fast, medium and slow three levels of feeding; when the weight of the material reaches the set value of fast feeding, stop the fast feeding and keep the medium feeding; when the weight of the material reaches the set value of fast feeding, stop the medium feeding and keep the slow feeding; when the weight of the material reaches the final set value, the door is closed to complete the dynamic weighing At this time, the system detects whether the bag clamping device is in a predetermined state, when the bag has been clamped, the system sends out a control signal to open the weighing hopper discharge door, the material enters into the bag, the material is put into the end of the automatic closure of the discharge door of the weighing hopper; unloading of empty material after the release of the bag clamping device, the bag automatically falls; bags fall down to be sewn and transported to the next workstation. So the cycle is repeated automatically.
Main Technical Parameters
|
Model No. |
Weighing range (kg) |
Weighing speed (pack/h) |
Indexing value |
|
HY-50 |
10-50 |
≥180 |
20g |
|
HY-1000 |
1000-1500 |
≥20 |
1kg |

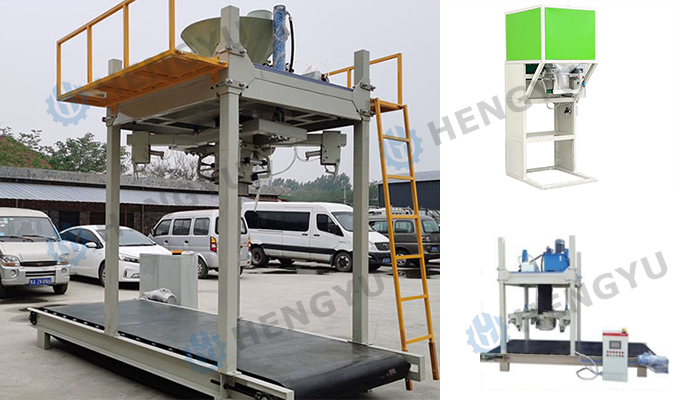

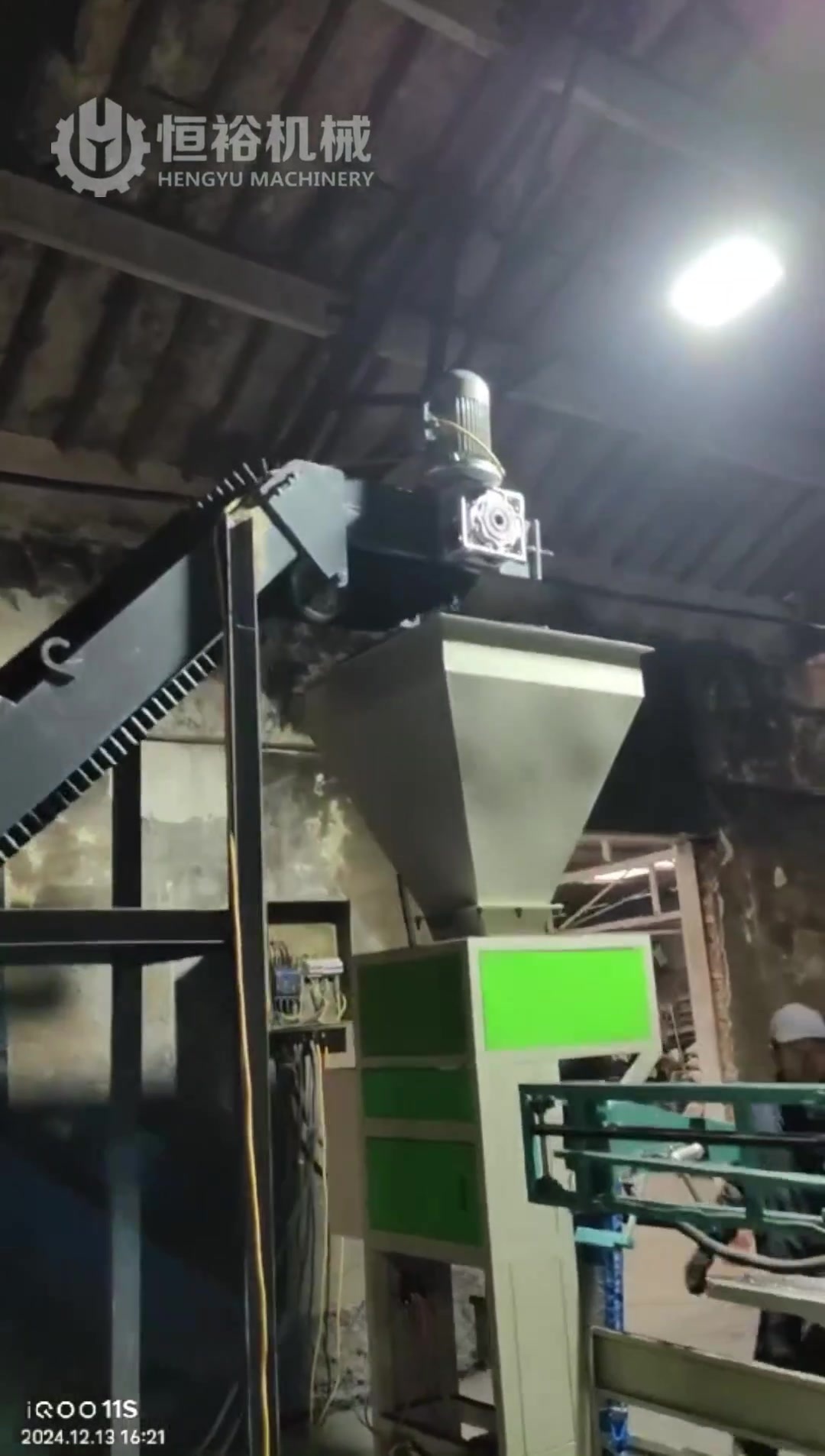

Work Scenario
