Describe:
Crush branches, shrubs and other plant materials into small particles. The core device is the crushing knife, the design and material of the knife directly affects the crushing effect and the service life of the machine. High-quality knives ensure that the branches are cut evenly and the size of the crushed particles is more consistent.
Specificity:
01Tree branch crusher can be pruned branches, leaves and other garden waste to be shredded, and then used as mulch to cover the flower beds, lawns and other places, to play a moisturizing, heat preservation, to prevent the growth of weeds. At the same time, the shredded garden waste can also be used as compost raw materials, used to improve the soil to improve soil fertility.
Product Details
Working Principle
Feeding: The branches enter the pulverizer through the feeding port, which is usually equipped with a pressure device to ensure that the material enters the pulverizing chamber stably.
Crushing: In the crushing chamber, the high-speed rotating blades or discs cut, hit and tear the branches. The blades are usually mounted on the rotor, and the cutting force generated by the high-speed rotation will shred the branches.
Screening: The crushed material is screened through the screen, the particles that meet the particle size requirements pass through the screen, and the larger particles are returned to the crushing chamber to continue crushing.
Discharge: Qualified crushed materials are discharged from the discharge port by fan or gravity, which can be directly collected or used for subsequent processing.
Tree branch crusher is widely used in gardening, forestry, agriculture and other fields, can efficiently deal with waste tree branches, to achieve the recycling of resources.
Main Technical Parameters
| Model No. | Dump Knife Quantity Piece |
Inlet Size (mm) |
Cutter disc diameter Diameter Dual material opening (mm) |
Number of cutter Quantity (pieces) |
Capacity (t/h) |
Spindle speed (r/min) |
Power (kw) |
Output size Adjustable according to screen Adjustable (mm) |
| 500 | 30 | 500*30 | 500 | 4 | 0.8-1.5 | 2600 | 22-30 | 3-30 |
| 600 | 40 | 600*35 | 600 | 4 | 1.2-2.0 | 2400 | 30-37 | 3-30 |
| 800 | 56 | 800*30 | 600 | 4 | 1.8-2.0 | 2200 | 45-55 | 3-30 |
| 900 | 56 | 850*35 | 800 | 4 | 2.0-2.5 | 2000 | 55-75 | 3-30 |
| 1000 | 72 | 1000*40 | 800 | 4 | 2.5-3.0 | 2000 | 75-90 | 3-30 |
| 1300 | 108 | 1300*50 | Customization required | Customization required | 3.0-5.0 | 1800 | 45*2 | 3-30 |
| 1500 | 132 | 1500*50 | Customization required | Customization required | 5.0-8.0 | 1800 | 55*2 | 3-30 |

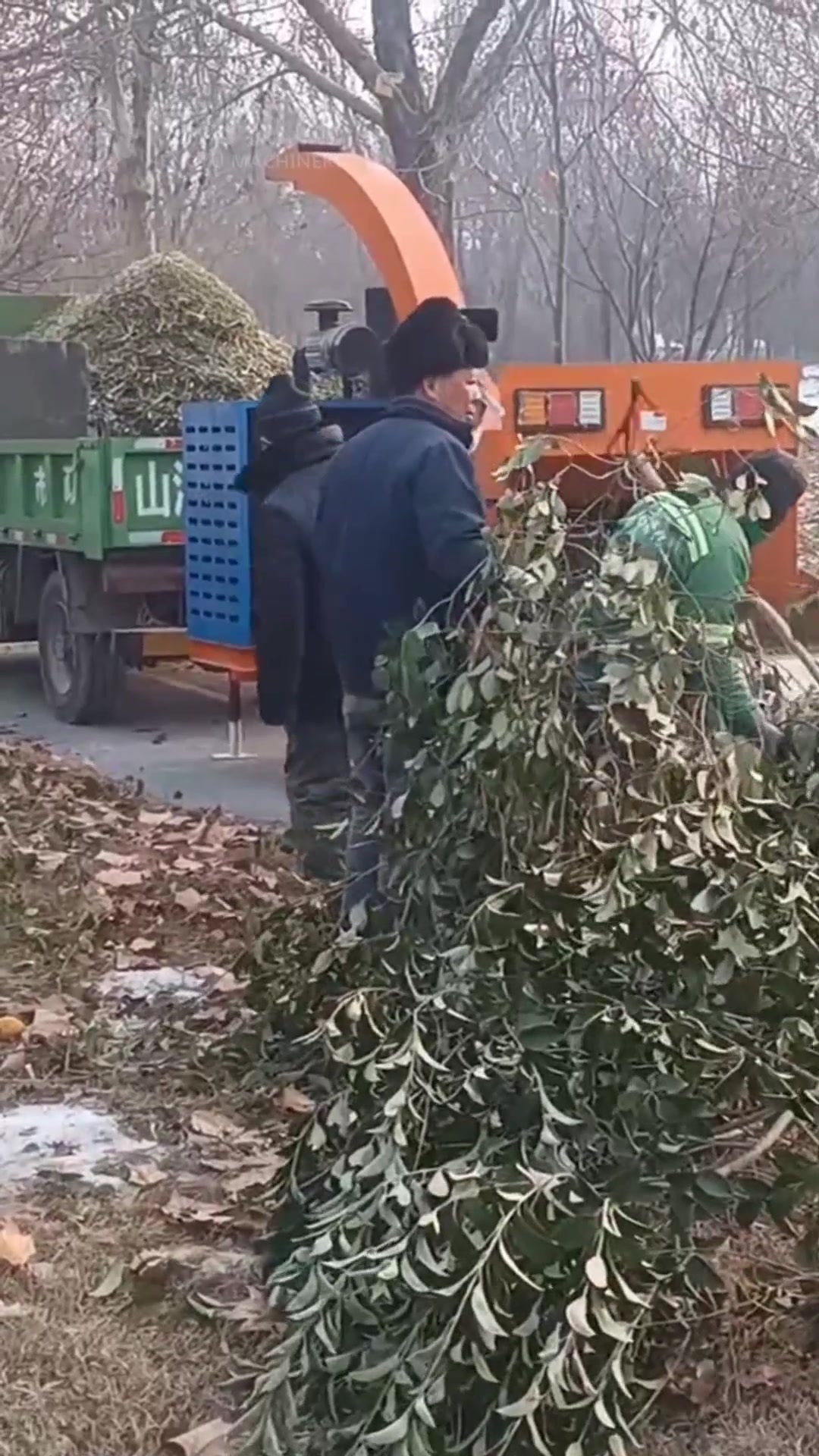

Work Scenario
Tree branch crusher 02
Tree branch crusher 01
